6000mAh 12.8V 4S1P 32650 Lithium Battery MSDS UN38.3 Approved
6000mAh 12.8V 32650 Lithium LiFePO4 Battery Pack 4S1P For Light MSDS UN38.3 Approval
Quick details:
1. Diameter*Height: 128*32*65mm (Lithium Ion 32650size 4S1P)
2. Nominal Voltage: 12.8V
3. Nominal Capacity: 6000 mAh 19.2Wh
4. Cycle life: 5000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery cell
7. CE , UL ,UN38.3 , MSDS compliant
Description:
Most safe lithium technology today.100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.
Integrated BMS (Battery Management System)
ABS+PC UL V-0 flame resistant,connection per terminal
SMBUS /I2C/ HDQ interface for battery monitoring
Battery monitoring / cycles Storage,Adaptive cell balancing,Serial string equalisation
EA Energy has 14 years of experience in lithium battery production!
We can customize 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah lithium batteries. We can also customize any size and function you need.
Specifications:
| NO | Items | Specification | Remarks |
| 1 | Nominal Capacity | 6000mAh | 0.2C 1A Discharge |
| 0.2C 1A Discharge |
| 2 | Nominal Voltage/shipping voltage | 12.8V/12.85-14.4V | Voltage |
| 3 | Discharge Cut-off Voltage | 8.0V | 0.2C 5A Discharge |
| 0.2C 5A Discharge |
| 4 | Charge Limited Voltage | 14.4±0.03V | 0℃～45℃ |
| 5 | Standard Charge Current | 1.2A | 0℃～45℃ |
| 6 | Standard Discharge Current | 3A | -20℃~ +60℃ |
| 7 | Rapid Charge Current | 0.5C 5A | 10℃～45℃ |
| 8 | Rapid Discharge Current | 0.5C 5A | -20℃~ +60℃ |
| 9 | Max. Charge Current | 1C 5A | |
| Max Pulse Current | 3C | |
| 10 | Internal Impedance | ≤200mΩ | AC 1kHz condition |
| At AC 1kHz |
| 11 | Weight | About 585g | Weight 86±2g |
| |
| 12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 12.8~14.4V |
| ≤3 months | 0℃~ +30℃ | Ex-factory Voltage12.8~14.4V |
| ≤12 months | 20±5℃ | |
Products Details :
Applications:
LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Perfect for solar home, RV, campers, solar, motor homes, off-grid applications
Product Tags:
|
|

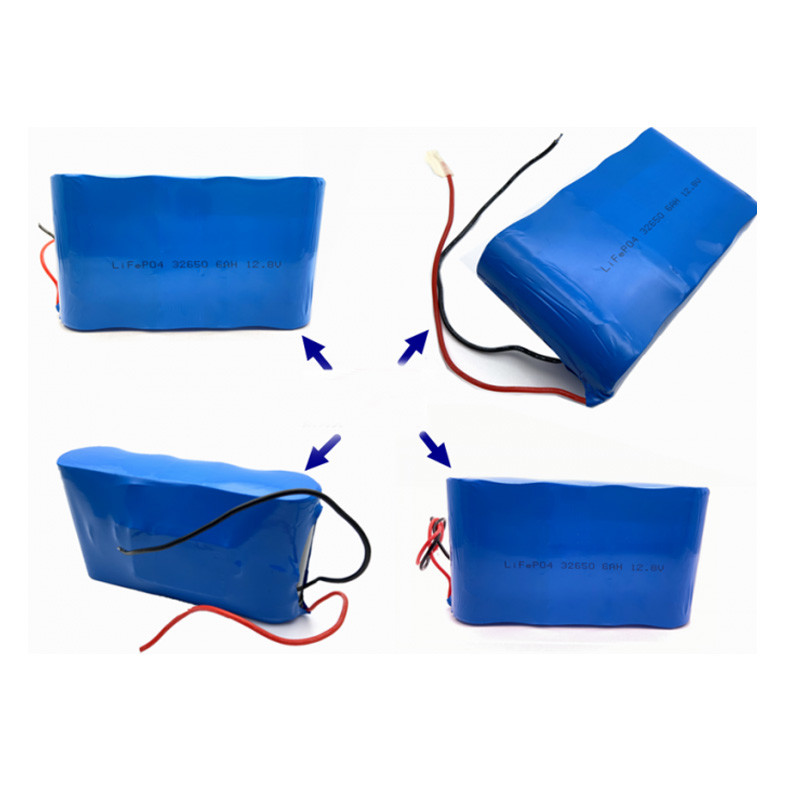

6000mAh 12.8V 4S1P 32650 Lithium Battery MSDS UN38.3 Approved Images
|
